LDS Navigation
Multi-LiDAR obstacle avoidance, smooth indoor travel
Step & stair anti-fall design
Dual rotating mop (10mm), carpet-friendly
Auto dust collection, 30-day self-cleaning
Auto mop self-cleaning, no manual work

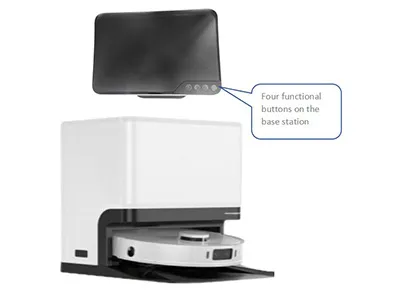

There are four functional buttons on the base station
| Model No: | RC109 | Specificaitons | FOB Shenzhen price |
 |
| MOQ:1000 FOB:dongguan Price： | |
| Robot Parameters | Materials | Plastic+metal | |
| Robot Size | 350×350×97mm | ||
| whole size | 443*505*512 mm | ||
| 40 HQ | 650pcs | ||
| Robot Weight | 18.9kgs | ||
| WIFI&Bluetooth | 2.4GHz+5GHz+Bluetooth | ||
| Battery Capacity | 5200mAh | ||
| Dust bin Capacity | 400mL | ||
| Water tank capacity | 230mL | ||
| Filter system | 3 layers(HEPA included) | ||
| Climb ability | 20mm | ||
| Suction power | 20000Pa | ||
| Noise Level | 60dB | ||
| Charging time | 4h | ||
| Working time | Mute: 180 minutes; Standard: 150 minutes; strong: 90 minutes | ||
| Mopping mode | double turntable（Encountering carpet automatic lifting 10mm/Apply 10N pressure when mopping the floor） | ||
| intelligent system | LDS+dual line laser+mechanical infrared obstacle avoidance | ||
| Base station/clean water tank | 3.5L | ||
| Base station/sewage tank | 3.5L | ||
| Base station/dust bag | 3.5L | ||
| Base station/cleaning solution tank | 150mL（Optional/automatic cleaning solution function，Need to add USD 5） | USD5 | |
| Base station/Disinfection and sterilization Nursing | Optional/Electrolytic water module+UV lamp module（Need to add USD 5） | USD5 | |
| Base station/hot water | 60 degree hot water cleaning mop | ||
| Base station/hot wind | 45 degree hot air drying mop | ||
| Base station/Automatic plumbing module | Optional/Automatic plumbing module（Need to add USD 45） | USD45 | |
| APP | tuya | ||
| Voice attempt | Yes | ||
| accessories | Side brush | 1pc | |
| MOP | 2pc | ||
| Cleaning tool | 1pc | ||
| User Manual | 1pc | ||
| dust bag | 1pc | ||
| Hyper | 1pc | ||
| Qucik Start Guiadance | 1pc | ||
| Note: | The above product prices are for reference only. Due to factors such as order quantity, material market price fluctuations, and customization situations, pricing needs to be re evaluated before confirming the IP. | ||
